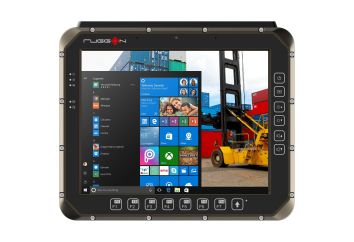

RuggON VULCAN X

Manufacturer: RuggON

Description

Outdoor display optimizes visibility for day or night
The screen defroster option for cold storage applications
IP66, MIL-STD 810H and IEC-60721-3-5 5M3 certified
Supports CAN bus 2.0B, SAE J1939
5G ready and WiFi supports fast roaming
Rich I/O design for maximum utilization
Smart power management with wide power input to fulfill diversified applications
Multi format video input option
Navis Ready Industries : container port, warehousing and agriculture

Product out of stock

Product intended for professional use only

The VULCAN X : Most versatile and efficient Vehicle Mount Computer in its class | RuggON

System	Intel® Core™ i5-8365UE 1.6GHz, optional Intel® Celeron® 4305UE 2.0GHz 4GB DDR4 SODIMM, expandable to 32GB M.2 2280 SSD Built-in 6-axis motion sensor, dual speaker OS supports Windows 10 IoT Enterprise
Durability	IEC 60529 IP66, IEC 60721-3-5 class 5M3 MIL-STD-810H (Vibration, shock and optional salt fog) Operating temperature : -30° C to +55° C
Display	10.4-inch 1024 x 768 XGA 1200 nits brightness supports auto-dimming 5-wire resistive touch supports defrost / defog function PCT by request
I/O Interface	RS-232 with power supported x 1 RS-232/422/485 x 1, RS-232 x 2, RS-485 x 2 Gigabit Ethernet x 2 USB 3.1 x 1, USB 2.0 x2, USB 3.1 type C x 1 (DP Alt Mode supported) Micro SD slot x 1, Micro SIM slot x 2 Optional CAN bus 2.0B x 2 or SAE J1939 x 1 DI x 2, DO x 2 Mic in x 2, Line out (L/R) x 1 Optional video input x 1 DC-in x 1
Communications	Wi-Fi 802.11 a/b/g/n/ac/v/r/k Bluetooth V5.0 Optional 4G LTE / HSPA+ / GPRS or 5G Optional GNSS (GPS/Galileo/GLONASS/BeiDou/QZSS)
Function Button	Programmable button x 7, brightness adjustment x 2, volume adjustment x 2, display on/off x 1, optional defrost / defog button x 1
Power	9~60 VDC input Ignition sense with delay on/off setting Wake on RTC UPS backup battery
