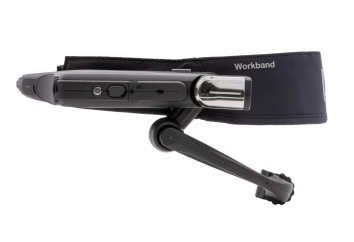

RealWear HMT-1
- An Android head-worn computer with voice command recognition
- Built-in 16MP camera with optical image stabilization
- Display placed in front of the user's eye
- Resistant to spills (IP66) and falls from 2m (MIL-STD-810G)
- Dedicated for remote service, diagnostics, efficient documentation of procedures
Description
REALITY FIRST, DIGITAL SECOND
The RealWear HMT-1® has been the market leader in industrial wearables since its launch in 2018. Purpose built for the modern frontline workforce, it connects the frontline worker to information and expertise needed to successfully complete job tasks safely and efficiently. It’s an industrial dashboard: there when you need it and out of your way when you don’t.
360° DEMO PRESENTATION
ENHANCES REMOTE COLLABORATION
Frontline Workers can easily connect with remote experts in real-time, from anywhere, using optimized video collaboration applications. Enables frontline workers to get assistance from an expert remotely to resolve any complex issue.
HANDS FREE WEARABLE DIGITAL WORKFLOW DEVICES
Digital Workflow solutions provide visual instructions, checklists, data entry, and visual documentation of completed steps while on the go. Assisted reality devices enable digital workflow to reach workers when and where they need it — improving productivity and reducing operational errors.
Basic parameters
| CPU |
2.0 GHz 8-core Qualcomm® Snapdragon™ 625 |
Water and Dust Resistance | IP66 |
| Display |
20° field-of-view, 1-meter fixed focus 24-bit color LCD, 0.33-inch diagonal, outdoor visible |
Connectivity |
802.11 a/b/g/n/ac - 2.4 GHz i 5GHz |
| Battery |
3250mAh Li-Ion, rechargeable and field swappable |
Certificates | MIL-STD-810H |
| SSD |
64GB internal storage / MicroSD slot (max card supported 512GB) |
Operating Temparature |
-20°C to +50°C |
| Drops | 2m drop resistant | Warranty | 24 months |
Technical Specification
- RealWear HMT-1 Technical Data
| Durability class | Hands Free Rugged Tablet |
| Operating system | Android 10 (AOSP) + WearHF™ hands-free interface |
| Processor | 2.0 GHz 8-core Qualcomm® Snapdragon™ 625 with Adreno 506 GPU - OpenGL ES 3.1 & OpenCL 2.0 |
| Screen type | 20° field-of-view, 1 meter fixed focus |
| Nominal resolution | WVGA (854x480) |
| Memory | 3GB |
| Hard drive | 32GB Internal Storage |
| Webcam | 16 MP 4-axis optical image stabilization, PDAF with LED flashlight |
| Expansion ports | MicroSD Slot |
| I/O ports | 3.5mm audio 1 USB Type-C |
| Communication | BT 4.1 LE (Low Energy) Wi-Fi 802.11 a/b/g/n/ac – 2.4GHz and 5GHz GPS and Location GPS, GLONASS, BeiDou, Baidu A-GPS 9-DOF (3-axis accelerometer, magnetometer, and gyroscope), software enhanced stabilization |
| Battery | 3250 mAh Li-Ion, rechargeable and field swappable |
| Battery rundown | 9-10h |
| Weight | 380g |
| Dust/water resistance | IP66 |
| Shock/drop/vibration resistance | MIL-STD-810G / 2m feet drop resistant |
| Operating temprature | -20°C + 50°C |
