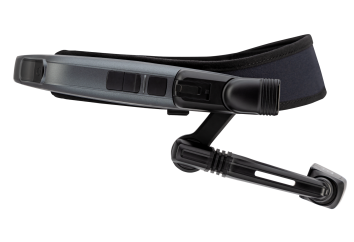

RealWear Navigator 520
Recommended
- An Android head-mounted rugged tablet
- The biggest screen among RealWear devices
- Voice control via predefined commands
- Built-in 48MP camera with optical image stabilization
- The display is placed right in front of the user's eye
- Modular design
- Spill-proof (IP66) and 2m drop-proof (MIL-STD-810H)
- Dedicated for remote service, diagnostics, inspection, efficient documentation of procedures.
Description
THE BEST JUST GOT BETTER
Just when you thought frontline wearables couldn’t get any better than RealWear Navigator 500, RealWear has raised the bar with the introduction of our new improved eye box – the HyperDisplay!
Included with the new RealWear Navigator 520, the HyperDisplay offers a bigger, sharper, bolder image to make work on the frontline even better.
SEEING IS BELIEVING
RealWear Navigator 520 is the latest device in the award-winning RealWear Navigator 500 Series. Navigator 520 offers the enhanced HyperDisplay while maintaining all of the amazing features of the RealWear Navigator 500, making it our best wearable yet.
ENHANCES REMOTE COLLABORATION
Frontline Workers can easily connect with remote experts in real-time, from anywhere, using optimized video collaboration applications. Enables frontline workers to get assistance from an expert remotely to resolve any complex issue.
HANDS FREE WEARABLE DIGITAL WORKFLOW DEVICES
Digital Workflow solutions provide visual instructions, checklists, data entry, and visual documentation of completed steps while on the go. Assisted reality devices enable digital workflow to reach workers when and where they need it—improving productivity and reducing operational errors.
REVOLUTIONARY MODULAR DESIGN
48MP CAMERA SENSOR
Stunning camera with an incredible low-light performance, enhanced zoom without sacrificing image quality and advanced video stabilization. The modular design allows the camera to be easily removed and swapped out with other accessories or camera cover, if environment does not permit. It features two modes.
Standard Mode delivers 12MP image resolution with 5 zoom levels. Great low light performance.
Telephoto Mode with enhanced zoom that delivers >6X zoom while still retaining HD quality (720p) or >4X zoom while retaining full HD quality (1080p).
SEE THE INVISIBLE - THERMAL CAMERA MODULE*
Solve problems faster by adding fully hands-free thermal capability including MSX® Enhanced Image Mode, which adds visible light details to full thermal images for greater detail (*Thermal Camera Module is an optional accessory)
Basic parameters
| CPU |
2.0 GHz 8-core Qualcomm® Snapdragon™ 662 |
Water and Dust Resistance | IP66 |
| Display |
20° field-of-view, 24-bit color LCD, 0.35-inch diagonal, outdoor visible, WVGA (1280X720) (appear like 10 inch tablet) |
Connectivity |
802.11 a/b/g/n/ac - 2.4 GHz i 5GHz |
| Battery |
2,600 mAh / 10.0 Wh Li-polymer, rechargeable, hot-swappable |
Certificates | MIL-STD-810H |
| SSD |
64GB internal storage / MicroSD slot (max card supported 512GB) |
Operating Temparature |
-20°C to +50°C |
| Drops | 2m drop resistant | Warranty | 12 months |
Technical Specification
- RealWear Navigator 520 Technical Data
| Display Type | 24° field-of-view, 24-bit color LCD, 0.35-inch diagonal, outdoor visible |
| Resolution | HD (1280X720) |
| PPE Compatibility |
Works with many hard hats, protective eyewear, masks and more |
| Microphone | 4 digital microphones with active noise cancellation Accurate voice recognition in noise up to 100 dBA |
| Speaker | Internal 94 dBA loudspeaker |
| Camera Image | 48 MP Sensor, PDAF with LED flashlight |
| Camera Video | Up to 1080p @ 60fps, >6X zoom in HD, video stabilization. codecs: VP8, VP9, H.264, H.265 HEVC |
| Warranty | 1-Year Warranty |
| Extended Service & Support Plans | Available |
| Foresight Cloud Services |
Accelerates centralized deployment and management of devices |
| Included accessories |
Workband, USB Type-C charging cable |
| Security | Qualcomm® Trusted Execution Environment, Crypto Engine, Secure Boot |
| Operating System |
Android 11 (AOSP) + WearHF™ hands-free interface + Enterprise features |
| Chipset | 2.0 GHz 8-core Qualcomm® Snapdragon™ 662 with Adreno 610 GPU - OpenGL® ES 3.2 & OpenCL™ 2.0 |
| Memory | 64GB internal storage / 4GB RAM / MicroSD slot (max card supported 512GB) |
| Languages & Dialects Supported | Chinese (Cantonese, Mandarin-Simplified and Traditional), Czech, Dutch, English (American, Australian, British), French, German, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Thai |
| Bluetooth | Bluetooth® 5.1 |
| Wi-Fi | 802.11 a/b/g/n/ac - 2.4 GHz and 5GHz |
| GPS and Location | • GPS, Glonass, BeiDou, Galileo, QZSS, and SBAS • NavIC support • Dual-Frequency GNSS (L1 + L5) • Qualcomm® Sensor-Assisted Positioning |
| IMU - Head Movement Tracking | 3 IMUs (including 3-axis accelerometers, gyroscopes, eCompass) |
| Capacity | 2,600 mAh / 10.0 Wh Li-polymer, rechargeable, hot-swappable |
| Weight | 9.7oz/274g |
| Ruggedization | IP66, MIL-STD-810H, 6.5 feet / 2-meter drop |
| Dedicated Buttons | Power button (with integrated fingerprint sensor), Programmable: action button, left button, right button |
| Ports | 1/8” / 3.5mm audio, 1 USB Type-C |
| Boom Arm | Adjusts six ways for most head sizes, left or right eye compatible, display can be moved out of way when not in use |
| Operating Temperature, Humidity | -4°F to +122°F / -20°C to +50°C, 5% to 95% relative humidity (non-condensing) |
| Included Applications | Document Navigator, Camera with Barcode Reader, Audio Recorder, Video Recorder, Webpage Viewer, Cloud Sync, Media Player, Calculator, Pedometer, Timer |
| Sign-in Options | Companion App, Voice Keyboard with secure mode |
