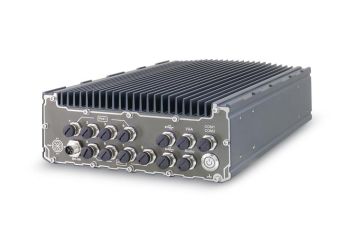

SEMIL-1700
- Intel® Xeon® E or 9th/ 8th-Gen Core™ i7/ i5/ i3 CPU
- Extremely rugged, IP67-rated waterproof and dustproof
- -40°C to 70°C wide-temperature fanless operation
- 2U 19" half-rack form-factor for rack or wall-mount
- Up to 8x 802.3at Gigabit PoE+ ports via M12 X-coded connectors
- VGA, USB 2.0 and COM ports via M12 A-coded connectors
- Patented SuperCAP-based uninterruptible power backup* (SEMIL-1710J)
- 8V to 48V wide-range DC input with built-in ignition power control
- MIL-STD-810G and EN 50155 certified
Description
Basic parameters
- Intel Xeon E or 9th/8th generation Core processor
- Up to 64 GB of DDR4 memory
- RAID 0/1 support
- TPM 2.0 support
- Wide temperature range of -40°C to 70°C
- VGA, USB 2.0 and COM ports connected via A-coded M12 connectors
- MIL-STD-810G and EN 50155 certified
- Extremely rugged, waterproof and dustproof with IP67 rating
SEMIL-1700 series is an extremely rugged 2U half-rack computer with an IP67-rated waterproof and dustproof design. Powered by Intel® Xeon® E or 9th/ 8th-Gen Core™ CPU and coupled with workstation-grade Intel® C246 chipset, it can support up to 64 GB ECC/ non-ECC DDR4 memory. The 2U half-rack form-factor SEMIL-1700 series incorporates Neousys' best-in-class thermal design and offers mounting flexibility where you can wall or rack-mount up to two SEMILs side by side.
SEMIL-1700 adopts a corrosion-proof chassis made of stainless steel and aluminum to counteract against moisture and salinity. Offering a variety of I/O connectivities that utilize M12 connectors to guarantee extremely rugged connections in shock and vibration environments, it has up to eight 802.3at PoE+ ports to supply 25W of power to connected devices. Internal expansion wise, it has an M.2 M-key socket to support NVMe SSD and mini-PCIe sockets for extending feature sets. Additionally, SEMIL-1700 features two 2.5" SATA SDD/ HDD accommodation, 8-48V wide-range DC input with ignition power control and complies with MIL-STD-810G and EN 50155.
To top it off, SEMIL-1710J is equipped with Neousys' innovative SuperCAP-based UaPS* containing 2500 watt-second stored energy to sustain or safely shut down the system during unforeseen power outages. Protected against water, dust, high/ low temperature, shock/ vibration and power interruption, Neousys' SEMIL-1700 series is set to redefine edge application computing, where ruggedness matter.
Technical Specification
| SEMIL-1704 | SEMIL-1714J | SEMIL-1708 | SEMIL-1718J | |
| Processor | Supporting Intel® Xeon® E and 9th/ 8th-Gen CPU (LGA1151 socket) - Xeon E 2278GE (8C/16T) / 2278GEL (8C/16T) / 2176G (6C/12T) - i7-9700E, i7-9700TE, i7-8700, i7-8700T - i5-9500E, i5-9500TE, i5-8500, i5-8500T - i3-9100E, i3-9100TE, i3-8100, i3-8100T |
|||
|---|---|---|---|---|
| Chipset | Intel® C246 platform controller hub | |||
| Graphics | Integrated Intel® UHD Graphics 630 | |||
| Memory | Up to 64 GB DDR4-2666/ 2400 SDRAM (two SODIMM sockets) | |||
| AMT | Supports AMT 12.0 | |||
| TPM | Supports TPM 2.0 | |||
| PoE+ | 1x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I219 (M12 X-coded) | |||
| 3x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 (M12 X-coded) | 7x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 (M12 X-coded) | |||
| 10 GbE Port(Build Option) | Optional: 1x 10 GbE port by Intel® X550AT controller (M12 X-coded)** | |||
| Native Video Port | 1x VGA (M12 A-coded), supporting 1920 x 1200 resolution | |||
| Series Port | 2x 3-wires RS-232 ports COM1 & COM2 (M12 A-coded) | |||
| USB | 2x USB 2.0 (M12 A-coded) 1x USB 2.0 (internal) |
4x USB 2.0 (M12 A-coded) 1x USB 2.0 (internal) |
||
| Audio | - | 1x mic-in and speaker-out (M12 A-coded) | ||
| SATA HDD | 2x Internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1 | |||
| mSATA | 2x full-size mSATA port (mux with mini-PCIe) | |||
| M.2 | 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation | |||
| Mini PCI-E | 2x full-size mini PCI Express socket (mux with mSATA) | 2x full-size mini PCI Express socket (mux with mSATA) 2x full-size mini PCI Express socket |
||
| DC Input | 8V to 48V DC input (M12 S-coded) | |||
| Ignition Control | Built-in ignition power control (IGN/ GND signal via M12 serial port connector) | |||
| Capacity | - | 2500 watt-second | - | 2500 watt-second |
| Dimension | 220mm (W) x 310mm (D) x 90.5mm (H) | |||
| Weight | 5.8 kg | 6 kg | 5.9 kg | 6.2 kg |
| Mounting | Rack-mounting and wall-mounting | |||
| Operating Temperature | with 35W CPU -40°C ~ 70°C **** with >= 65W CPU -40°C ~ 70°C ***/ **** (configured as 35W TDP mode) -40°C ~ 50°C ***/ **** (configured as 65W TDP mode) |
|||
| Storage Temperature | -40°C ~85°C | |||
| Humidity | 10%~90% , non-condensing | |||
| Vibration | MIL-STD-810G, Method 514.7, Category 4 | |||
| Shock | MIL-STD-810G, Method 516.7, Procedure I | |||
| EMC | EN-50155, CE/FCC Class A, according to EN 55032 & EN 55024 | |||
