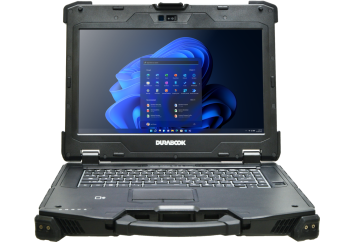

Durabook Z14I
Manufacturer: Durabook
Recommended
Fully Rugged Laptop 14" FHD / Fanless / Windows 11 Pro / IP65 / MIL-STD-810H
Description
- 14.0” FHD 1000 nits DynaVue® sunlight readable display with capacitive multi-touch screen
- MIL-STD-810H, MIL-STD-461G, IP65 certified
- Intel® Core™ 11th Gen CPU
- RS-232 x 2, USB-C, RJ45 x 2
- Port covers
- Removable quick-release battery and storage drive
Description
RUGGED MILITARY LAPTOP
The Durabook Z14I rugged laptop can tackle data-intensive activities quickly thanks to its Iris® Xe graphics and most recent 11th Generation Intel CoreTM processor. It has been designed to endure even the most hostile circumstances. The Z14I is more durable than other comparable products on the market thanks to its IP65 rating, protection against dust and water ingress, MIL-STD 810H certification and resistance to drops up to six feet. In comparison to other robust devices in its class, the device has also been tested for resistance to an explosive atmosphere, sun radiation, salt fog, and fungus.
The Z14I has a high-definition multi-touch screen with Durabook's own DynaVue® technology, which has the greatest contrast ratio and improves viewing clarity even from varied angles.
GREATER PERFORMANCE
The Durabook Z14I has an Intel® 11th generation CPU with an Iris® Xe graphics processor, which improves speed to handle bus data processing. Intel® Wi-Fi 6 and Bluetooth® V5.2's super high-speed data transferring capabilities allow all data to be instantaneously synced and supplied back to the data center without any hiccups.
FOR ANY CONDITIONS
With its unbreakable mechanical construction and careful component selection, the Z14I can seamlessly adapt to various situations. It is MIL-STD-10H approved and has additional features including resistance to explosive environment, sun radiation, salt fog, and fungus. It is also guaranteed to withstand a drop of six feet and certified for IP 65.
Also, it is more durable than ever thanks to certifications from ANSI-C1D2 and MIL-STD-461G.
ENTIRELY CUSTOMIZED
A smart device featuring multiple interface types and add-on options, such as ThunderboltTM 4, two RJ-45 ports, two RS-232 serial ports, ExpressCard 54, or a PCMCIA Type II slot.
Moreover, USB alternatives provide all Type-C to Type-A or USB 3.2 Gen2 to USB 2.0 capabilities.
Our adaptable customisation package, which is available upon purchase, can accommodate certain customers' particular needs.
AMAZING VIEWING
Every visual component of the 14-inch Full HD 1080p widescreen display is visible at a glance thanks to DynaVue® technology. The Z14I is the best tough laptop with the highest contrast ratio (CR), which helps to remove internal reflections and improves viewing clarity when seen from different angles. Its brightness may reach up to 1000 nits.
INNOVATIVE TOUCH TECHNOLOGY
The 10-point capacitive multi-touch panel includes four touch modes: Glove, Stylus, Water, and Finger. This solutionis optimized for indoor and outdoor usage, making it more convenient to use no matter the working environment.
ENDLESS STORAGE OPTIONS
Z14I uses the most recent NVMe PCIe SSD technology, offering up to 1TB of storage and PCIe speeds that are four times quicker than SATA III. To increase the onboard storage, it can accommodate two extra internal SATA III SSD drives.
The Z14I device also offers a media bay for a variety of setup possibilities, including an optical drive, a second battery, or a third SATA III SSD storage option.
UNLIMITED OPTIONS FOR CUSTOMIZATION
One of the Z14I's most significant improvement features is the expansion box. The expansion box offers two PCIe interface slots for alternative solution architectures, a dedicated graphics card, military-grade connectors, or storage security extension with RAID 0/1/5/10 configurations, depending on the application, from a workstation to a portable server. It might also be field-installed using straightforward instructions to turn into a potent portable server or the best option for a particular purpose.
Users are guaranteed the power, flexibility, functionality, and data security they require for their unique applications thanks to the unit's limitless configuration options.
Basic parameters
| CPU | Intel® Core™ 11th Gen | Water and Dust Resistance | IP65 |
| Display |
14" FHD IPS 1000 nits DynaVue® sunlight readable |
Connectivity |
Available with 4G and GPS |
| Battery | Main battery Li-Ion, 10.8V, 6900mAh, 12.5 hours, optional 2nd battery Li-Ion 10.8V, 4700mAh, +9 hours | Certificates | MIL-STD-810H |
| SSD | NVME PCIE SSD (+ option to upgrade with additional SATA SSDs) |
Operating Temparature |
-20°C to +60°C |
| Drops | 6' drop 26 faces | Warranty | 36 months |
Technical Specification
- Durabook Z14I Technical Data
| Rugged Spec | MIL-STD 810H certified (Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity, Explosive Atmosphere, Solar Radiation, Salt Fog, Fungus Resistance) MIL-STD-461G certified (Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility) ANSI/UL 121201, Class I, Division 2 6′ drop 26 faces IP 65 certified Aluminum-magnesium alloy chassis Port covers Removable quick-release battery and storage drive Sunlight readable display Optional swappable battery technology |
| Display | 14.0” FHD (1920 x1080) 1000 nits DynaVue® sunlight readable display with capacitive multi-touch screen User selectable touch mode for Finger/Water, Glove, or Stylus programmable function |
| Operating System | Windows® 10/11 Pro 64-bit |
| Processors | Intel® Core™ i7-1185G7 vPro™ (11th Gen) 3.0GHz processor with Turbo Boost Technology up to 4.8GHz, 12MB cache Intel® Core™ i7-1165G7 (11th Gen) 2.8GHz processor with Turbo Boost Technology up to 4.7GHz, 12MB cache Intel® Core™ i5-1145G7 vPro™ (11th Gen) 2.6GHz processor with Turbo Boost Technology up to 4.4GHz, 8MB cache Intel® Core™ i5-1135G7 (11th Gen) 2.4GHz processor with Turbo Boost Technology up to 4.2GHz, 8MB cache |
| Memory | 2 slots 8GB up to 64GB (3200MHz DDR4) |
| Storage | Main: 256GB/512GB/1TB NVME PCIE SSD Optional 256GB/512GB/1TB SATA SSD Optional OPAL 2.0 SSD Optional 2nd/3rd storage (SATA SSD)1 |
| Graphics | Intel® Iris® Xe Graphics Optional NVIDIA® GEFORCE GTX 10501 |
| Camera | Integrated 2.0 MP web-cam with shutter design Optional IR camera for Windows Hello1 |
| Audio | Integrated microphone Intel® High Definition Audio Compliant Integrated speaker x 2 Keyboard volume and mute controls |
| Media Bay (One Option Only) |
Optional DVD super Multi Optional 2nd battery Optional SATA SSD |
| Expansion Box | Optional PCI-Express 3.0 (2 slots)1,6 Optional discrete VGA1,6 Optional storage extension with RAID 0/1/5/101,6 Optional military-grade connectors1 |
| I/O Ports | Thunderbolt 4 (type C) x 1 USB 3.2 Gen2 (type C) x 1 (support DP) USB 3.2 Gen2 (type A) x 1 USB 3.2 Gen1 (type A) x 1 USB 2.0 (type A) x 1 Audio in/out (combo jack) x 1 microSD card (microSDXC) x 1 10/100/1000 Ethernet (RJ45) x 2 VGA port (D-sub,15-pin) x 1 HDMI port (type A) x 1 Serial port (RS232 : D-sub,9-pin) x 25 Docking connector (41-pin Pogo) x 1 SIM card x 1 Smart card reader x 1 DC-In jack x 1 ExpressCard 54 x 1 (default) or PCMCIA Type II x 1 Optional RF antenna pass-through for GPS, WWAN, and WLAN |
| Keyboard & Pointing Device | 2 user-definable keys (P1/P2) RF signal slide-switch Standard membrane keyboard with LED backlight |
| Communications | Integrated 10/100/1000 Ethernet Intel® Wi-Fi 6 AX201 (802.11 ax) Bluetooth® V5.2 Optional dedicated GPS module (UBLOX-NEO-M8N) Optional 4G LTE multi-carrier mobile broadband Optional RF antenna pass-through for GPS, WWAN, and WLAN |
| Security | Intel® vPro™ Technology (per CPU options) TPM 2.0 NIST BIOS compliant Easy removable SSD Smart card reader Stealth mode Night vision mode Kensington lock Optional Windows Hello1 Optional fingerprint scanner Optional LF/HF-RFID (NFC) reader1 |
| Power | AC adapter : 100-240V, 50Hz-60Hz, 90W Optional AC adapter (100-240V, 50Hz-60Hz, 120W), with NVIDIA® VGA Main battery Li-Ion, 10.8V, 6900mAh, 12.5 hours2 Optional 2nd battery Li-Ion 10.8V, 4700mAh, 9 hours2 Optional bridge battery : 5 minutes swap time3 |
| Dimension & Weight | 356 mm (L) x 280 mm (W) x 50 mm (H)4 3.6 kg4 |
| Warranty | 3-year limited warranty standard |
|
|
